Modern Supplemental Restraint Systems (SRS) rely on precise sensor data to protect occupants during a collision. When components are replaced or the control module is disturbed during repair, the system’s reference point can change.
Even when all parts are correctly installed, failure to recalibrate the system can result in warning lights, incomplete repairs, and potential safety risks.
As these systems depend on accurate inputs, even small changes in sensor position can affect how the system interprets vehicle movement. In many cases, the vehicle may appear to operate normally, leading to the assumption that no further action is required.
However, without recalibration, the system cannot confirm that its reference point is correct, meaning repairs may not be fully completed even if the original fault has been addressed.
By performing IMU calibration, technicians restore this reference point, ensuring the system is aligned correctly and capable of operating as intended.
SRS systems are designed to respond within milliseconds. To do this accurately, the system must correctly interpret vehicle movement, orientation, and impact severity. The Inertial Measurement Unit (IMU) plays a critical role in this process.
If its reference point changes, the system must be recalibrated.
Without recalibration:
Ensuring this final step is completed is critical to restoring correct SRS operation and ensuring the system is ready to protect occupants when it matters most. Without this final step, the repair isn’t complete.
IMU calibration should be performed whenever the SRS system is disturbed, including:
If the module is moved, recalibration is required.
SRS circuits use shorting connectors (shorting rings) to prevent accidental deployment.
If connectors are:
This can result in:
The latest Snap‑on diagnostic software expands SRS special‑function coverage with Inertial Measurement Unit (IMU) calibration support for the Volvo® XC90.
This enhancement gives technicians direct access to a critical post‑repair procedure, enabling recalibration of the system reference point after module replacement, removal, or repositioning. As modern SRS systems rely on precise sensor data to determine deployment strategy, restoring this reference is essential to ensure correct system operation.
Key benefits include:

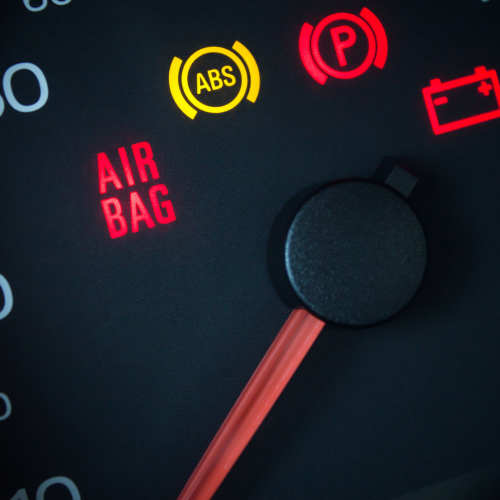

When replacing the SRS or when the control module has been removed, the acceleration sensor must be calibrated. The SRS warning lamp will be illuminated and a text message will appear on the instrument cluster when no calibration has been carried out.
The functionality of the SRS remains active even without calibrating, but no other systems that use the signals from the IMU will not have full functionality unless calibration is completed.

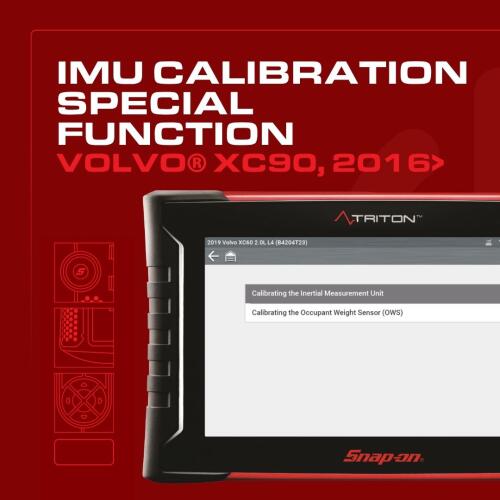

From the system selection menu select:
Airbag > Functional Tests > Special Functions > Calibrating the Inertial Measurement Unit
To begin the test:
SRS systems are safety‑critical. Completing the job correctly means more than replacing parts—it requires ensuring the system is fully calibrated, correctly referenced, and operating as designed.
Modern systems rely on precise sensor data to determine how and when restraint devices deploy. If calibration steps are missed, the system may still report faults or, more importantly, may not respond correctly in a collision.
With IMU calibration available, technicians can:
SRS systems are designed to operate in milliseconds, but the accuracy behind that response depends on correct setup and calibration. Ensuring these steps are completed is essential to delivering a safe, verified repair.
Modern SRS systems are complex, data‑driven safety systems that rely on accurate sensor input and reference values to operate correctly. From crash sensors and occupant detection systems to the Inertial Measurement Unit (IMU), every component plays a critical role in how the system responds during a collision.
Our latest Technical Focus article explains how these systems function in real‑world conditions and why recalibration is essential after repair. It highlights how module movement or replacement can affect system accuracy, and why the IMU must be recalibrated to restore the correct reference point.
You’ll also gain insight into common post‑repair issues—including persistent warning lights and no‑start conditions linked to safety systems such as pyrotechnic battery disconnects—helping you diagnose correctly and complete the job with confidence.
This exclusive feature transforms your diagnostic platform into an on‑demand learning hub you can access anytime, at your own pace.
From the homepage, simply select: Guided Component Tests → Classes → How To
Here you’ll find a dedicated library of practical, real‑world training, including:
Exclusively available on MODIS®, TRITON™, ZEUS® & Vantage® platforms with current software.
