Modern vehicle diagnostics demands more than just reading fault codes, it requires clarity, confidence, and the ability to verify what’s really happening at the component level.
With the latest software release, Fast‑Track® Guided Component Tests continue to deliver exactly that, now with expanded coverage and all-new testing capability for Porsche vehicles.
The latest software release delivers new guided component test procedures and detailed component location images, helping technicians diagnose with greater speed and precision.
As vehicle technology evolves, so does the complexity of diagnosing faults accurately. Relying solely on scan data can lead to assumptions, unnecessary part replacement, and increased repair time.
Fast-Track® Guided Component Tests is a diagnostic software feature that powers your tool to surpass the capabilities of others, and in the latest software release it's got better, providing a structured, consistent way to evaluate components by delivering:
Known‑good reference patterns
Clear component operation insight
Visual location guidance
Context to support signal interpretation
This allows technicians to move beyond guesswork and make more informed diagnostic decisions, improving efficiency, accuracy, and confidence in every repair.
Component-level testing becomes essential when:
Fault codes do not clearly identify the root cause
In these scenarios, understanding how a component operates, and being able to verify that behavior, can make the difference between a correct diagnosis and unnecessary parts replacement or repairs.
Guided Component Tests coverage has been expanded to include 2016–2024 Porsche 911, Macan, and Cayenne models.
The latest diagnostic software release expands coverage to include a brand-new manufacturer, introducing:
All‑new Guided Component Tests
This addition provides technicians with the tools and insight needed to confidently diagnose vehicles that have traditionally been more challenging in the aftermarket.

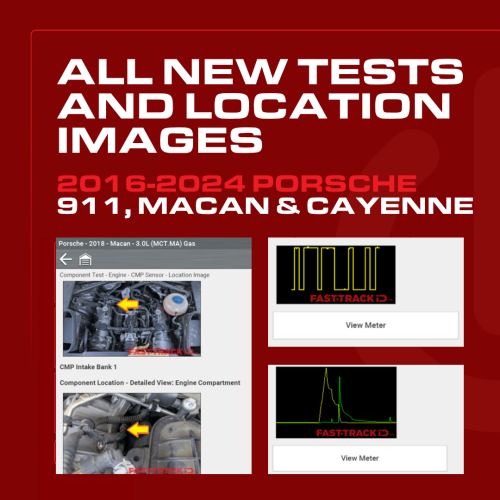

The latest update includes all-new Guided Component Tests for 911, Macan, Cayenne which includes:
This enhanced support helps simplify diagnostics on complex systems, reducing time spent locating components and improving overall repair efficiency.

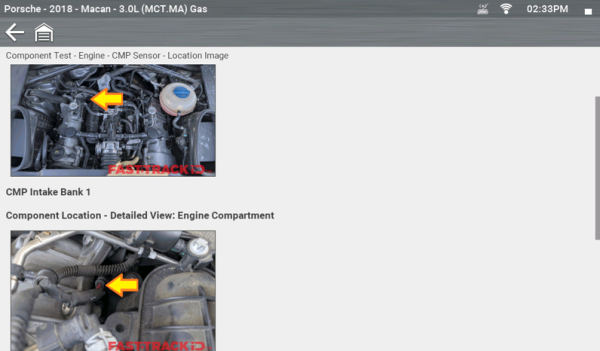

On a 2018 Porsche Macan 3.0L, the Camshaft Position (CMP) Intake Sensor Bank 1, can be identified using engine compartment overview and detailed imagery directly in Guided Component Tests.
The CMP sensor is a Hall‑Effect sensor, producing a digital square‑wave signal used by the control module to determine camshaft position.This signal is critical for:
Fuel injection timing

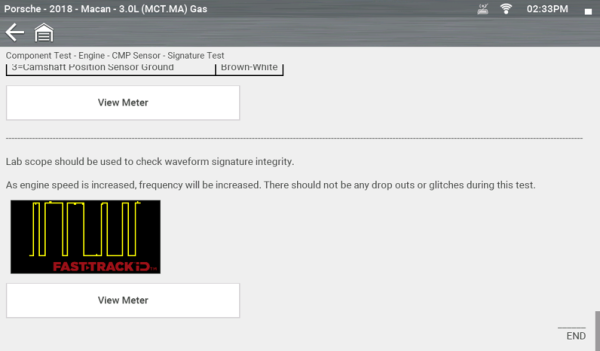

The sensor is typically located at the front of each cylinder head cover, with signal access available at the connector. The image below shows a CMP Sensor Signature Test for the 2018 Porsche Macan 3.0L, illustrating a known‑good waveform.
When using a diagnostic tool equipped with an oscilloscope (2‑ or 4‑channel), selecting the relevant test automatically configures the scope for the specific vehicle application. This helps reduce setup time and ensures consistent test conditions.
Guided Component Tests provide additional context by delivering:
By presenting this information alongside the captured waveform, technicians can better understand how the CMP sensor behaves under normal operating conditions and identify irregularities within the system.
To fully understand the value of Guided Component Testing, it’s important to look at how component-level diagnostics apply in real-world scenarios.
Component Testing Cam and Crank Sensors explores:
The article also highlights how Guided Component Tests support this process by providing known‑good reference data and structured insight—helping technicians move beyond fault codes and toward accurate, verified diagnosis.
This exclusive feature transforms your diagnostic platform into an on‑demand learning hub you can access anytime, at your own pace.
From the homepage, simply select: Guided Component Tests → Classes → How To
Here you’ll find a dedicated library of practical, real‑world training, including:
Exclusively available on MODIS®, TRITON™, ZEUS® & Vantage® platforms with current software.
To cut through the complexity, Patented Fast-Track® Troubleshooting workflow and filtered information bring focus to the specific vehicle and code you’re working on, including:
|
|
|
|
|
|
|
|
