AND REPAIR WITH CONFIDENCE. Modern automatic transmissions continue to increase in complexity — from electronic shifters and adaptive strategies to fully integrated IVT and CVT systems. For many technicians, this creates new challenges in pressure control, signal interpretation, and post‑repair learn procedures.
With the latest Snap‑on® diagnostic software release, you have the coverage, special functions, and FTID‑supported workflows needed to service these systems accurately and efficiently.
Modern transmissions blend electronic control with hydraulic operation. When the driver selects a gear, the transmission control unit (TCU) checks the gear‑range input, evaluates conditions like brake application and fluid temperature, then uses key sensor data to decide shift timing and pressure strategy. Temperature sensors influence warm‑up behaviour and line‑pressure targets, while speed sensors provide turbine and output speeds that help the TCU monitor ratio, slip and torque‑converter operation. The TCU uses this information to command on/off solenoids for hydraulic routing and PWM solenoids for precise pressure regulation.
Although the hardware varies across designs, the core principles stay the same. Traditional automatics use clutches and planetary gearsets, dual‑clutch transmissions alternate torque between two independently controlled clutches, and CVT/IVT systems adjust ratio continuously using variable pulleys. All of them depend on accurate sensor data and correct learned values to function properly, making scan‑tool data, functional tests, Guided Component Tests and required special functions essential for accurate modern transmission diagnosis.
Special functions and component tests play a crucial role in transmission work, and we have everything you need to stay ahead.
Explore the latest additions to our capabilities, including IVT TCU Pressure Learn, Oil Pressure Characteristics Input, and a full range of Clutch Solenoid Component Tests, all designed to help you diagnose and repair with greater accuracy and confidence.

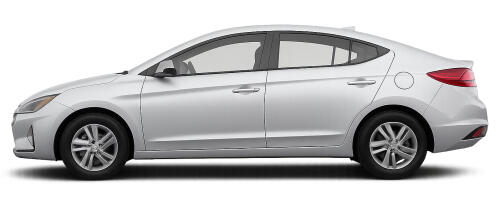

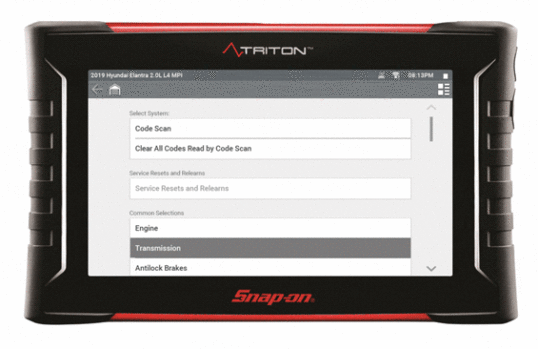

The latest software release introduces two essential special functions for Hyundai IVT systems, giving technicians the tools needed to service these transmissions correctly and avoid post‑repair drivability issues. These advanced IVT procedures ensure the TCU can accurately control belt/pulley pressure, maintain proper ratio behaviour and deliver stable, smooth operation after any repair.
Many Hyundai IVT units also require manual entry of a barcode/ID when completing a learn procedure — fully supported within Snap‑on® diagnostic software for a seamless workflow.
New functionality includes:

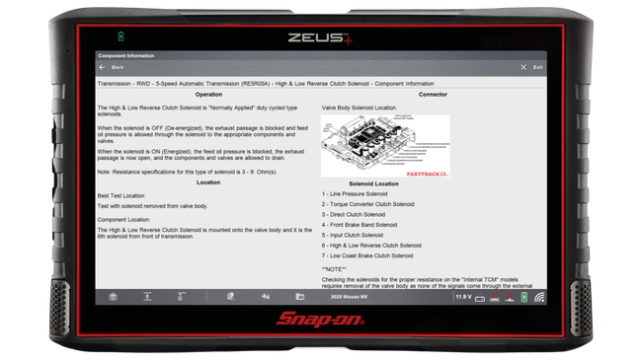

The latest software release introduces new CVT‑focused diagnostic capability for the 2020 NV1500, giving technicians the tools needed to accurately evaluate clutch‑solenoid performance and pinpoint the root cause of CVT issues with confidence.
These enhancements allow solenoid testing to be performed directly at the transmission harness, helping separate electrical faults from hydraulic problems quickly and without unnecessary component removal. This expanded coverage strengthens your ability to diagnose ratio‑control concerns, slip, harsh engagement and delayed movement by confirming whether the fault lies in the solenoids, the hydraulic system or the TCU’s control logic.
New functionality available:
CVT Clutch Solenoid Component Tests – verifies clutch‑solenoid electrical characteristics from the harness
FTID‑guided workflows – structured functional and electrical testing to reduce misdiagnosis
Skipping required resets and relearn procedures is one of the most common causes of comebacks in today’s transmission systems.
Snap‑on gives technicians the functionality and guided workflows they need to avoid repeat issues and verify repairs:
IVT TCU Pressure Learn
Oil Pressure Characteristics Input
Reset/Clear Adaptives
Transmission Characterization/Solenoid ID (Ford)
Clutch Solenoid Component Tests (CVT)
FTID-guided functional and electrical testing
These tools ensure the transmission, TCU, solenoids and hydraulic circuits are all properly aligned after repair.
Modern transmissions are no longer just hydraulic machines — they’re intelligent, software‑driven systems that depend on precise sensor data, pressure control and learned values to operate correctly. Our latest Technical Focus article breaks down how these systems work, why issues occur, and how technicians can diagnose them confidently using a structured, repeatable workflow.
Inside the article, we simplify complex transmission behaviour into clear, actionable steps: how to interpret PRNDL and speed‑sensor data, how solenoids really operate, and why adaptive values and learn routines matter more than ever. You’ll also learn how live data, Guided Component Tests, functional tests and post‑repair procedures fit together within the FTID workflow to prevent misdiagnosis and comebacks.
Whether you’re dealing with a conventional automatic, a dual‑clutch unit or an IVT/CVT system, the article shows how to apply the right tests at the right time for a verified fix.
This exclusive feature transforms your diagnostic platform into an on‑demand learning hub you can access anytime, at your own pace.
From the homepage, simply select: Guided Component Tests → Classes → How To
Here you’ll find a dedicated library of practical, real‑world training, including:
Exclusively available on MODIS®, TRITON™, ZEUS® & Vantage® platforms with current software.

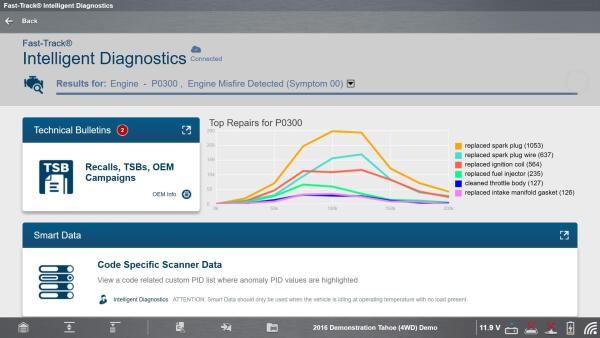

To cut through the complexity, Patented Fast-Track® Troubleshooting workflow and filtered information bring focus to the specific vehicle and code you’re working on, including:
|
|
|
|
|
|
|
|
Purchase a Software Plan
Keep your tool performing at its best. Software options help you diagnose problems faster and tackle even the toughest repairs with confidence. Click below for more information or contact your Snap-on Franchisee for the latest software deals.
Download the Latest Software
If you are a software subscriber, purchased a prepaid plan or participated in a free software offer, you can perform your own software installation by downloading the latest software release through the ShopStream® Self-Service application, quickly and easily.
