Modern vehicles rely on the Evaporative Emission Control (EVAP) system to prevent harmful fuel vapours from escaping into the atmosphere.
Instead of being lost, vapours are captured, stored, and later burned in the engine. Understanding how these systems work – and how to test them – is vital for accurate, efficient diagnostics. EVAP problems are one of the highest-occurrence issues and remain a leading cause of comebacks. Having thorough coverage and knowing why this matters across the board can take the stress out of EVAP issues.
Discover what’s hot in the latest diagnostic software release and see how we’ve got your back with dedicated EVAP content, giving you the critical repair information you need to diagnose and repair with confidence.
It’s also important to recognise the difference between a leak‑related DTC and an electrical fault. Mistaking one for the other can waste valuable diagnostic time and lead to unnecessary repairs.
Leak Testing: Smoke Machines: The fastest way to locate and measure leaks, making invisible vapour losses visible. The Snap‑on® Smart Smoke® EVAP Machine makes testing for leaks much easier. Trouble codes include: P0440 – EVAP Problem, P0442 – Small Leak, P0455 – Gross Leak, P0456 – Very Small Leak, P0457 – Fuel Cap.
Electrical Testing: Scan Tool Functional Tests: Activate purge and vent valves, monitor sensor responses, and run automated OEM EVAP routines. DTCs include: P0443 – Purge Control, P0446 – Vent Control, P0452 – Pressure Sensor, P0487 – Purge Solenoid.
Diagnosing these trouble codes is now easier than ever. Explore real‑world EVAP challenges below and see how the latest software speeds up repairs.
Snap‑on diagnostic software continues to expand its EVAP capabilities, adding new DMTL‑based special functions and guided workflows to make leak diagnosis faster, clearer and more reliable across modern petrol and hybrid vehicles.
Special functions and component tests play a crucial role in EVAP work, and we have everything you need to stay ahead. Explore the latest additions to our capabilities, including the DMTL Pump Run self‑test and enhanced EVAP workflow support — all designed to help you diagnose leaks more accurately, streamline your process and prevent EVAP‑related comebacks.
The latest software release adds full DMTL Pump Run Test capability for the 2024> Discovery Sport, allowing technicians to quickly establish whether the EVAP system can hold vacuum or pressure.
This function pressurises the tank and evaluates system integrity, helping technicians eliminate guesswork and avoid unnecessary parts replacement. When the test detects a leak, pairing it with smoke testing and a hydrocarbon analyser makes leak location fast and reliable.
New functionality includes:
These capabilities help avoid misdiagnosis and ensure accurate EVAP repair, even on advanced PHEV platforms.
From the systems menu, select:
This function performs an automated EVAP leak check by generating a controlled positive pressure inside the fuel tank and monitoring how that pressure behaves over a set time period. The ECM compares this behaviour against its internal reference to determine whether the system can hold pressure or if a leak is present.
If the test indicates a fault or DTC, an approved hydrocarbon detector (such as a 5‑gas analyser or DGA) should be used to locate the exact source of the vapour leak. This combination of automated testing and HC detection helps confirm the issue quickly and reduces the risk of unnecessary parts replacement.
EVAP faults often appear during normal driving and can be difficult to pinpoint without a structured test routine. The DMTL Pump Run Test is essential because it immediately confirms whether the system can hold pressure or vacuum — helping technicians avoid guesswork and unnecessary parts replacement. When a leak is detected, combining this with smoke testing and a hydrocarbon analyser makes it easy to locate the exact source, especially in areas prone to physical damage such as the fuel tank and vent lines.
Many EVAP comebacks occur because technicians clear codes too early, rely on the fuel cap alone, or mistake electrical purge/vent faults for leak issues.
These new EVAP functions support a consistent, step‑by‑step workflow that reduces misdiagnosis by verifying power and ground to the pump, identifying blocked vent circuits, and separating electrical faults from genuine leaks. Together, they give technicians the tools needed to diagnose EVAP issues accurately, avoid repeat visits, and deliver a correct fix the first time.
Modern EVAP systems rely on precise control of tank pressure, valve timing and leak‑detection routines, making accurate diagnosis more challenging than ever. Small leaks may only appear during specific drive conditions, while electrical faults or venting issues can mimic tank or valve failures. To diagnose these systems correctly, technicians need a clear understanding of vapour storage, purge control, vent operation and how the system seals itself for leak testing.
Dive deeper in our Technical Focus article to explore how the DMTL pump run test establishes the presence of a leak, how smoke testing and hydrocarbon sniffing reveal its location, and how simple electrical checks can separate mechanical faults from circuit issues. Combined with real‑world examples and a clear, repeatable diagnostic workflow, the article gives you the confidence to solve EVAP faults efficiently and prevent comebacks.
This exclusive feature transforms your diagnostic platform into an on‑demand learning hub you can access anytime, at your own pace.

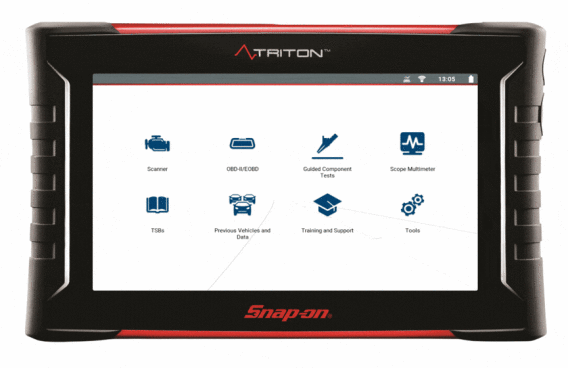

From the homepage, simply select: Guided Component Tests → Classes → How To
Here you’ll find a dedicated library of practical, real‑world training, including:
Exclusively available on MODIS®, TRITON™, ZEUS® & Vantage® platforms with current software.

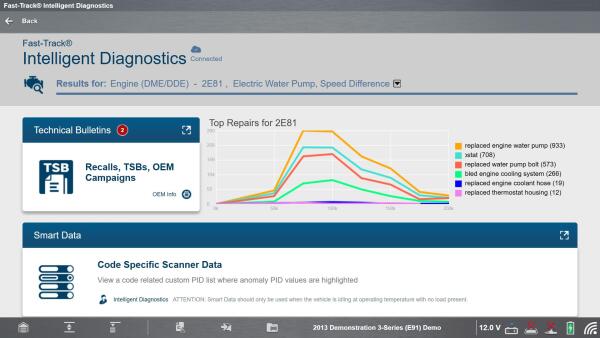

To cut through the complexity, Patented Fast-Track® Troubleshooting workflow and filtered information bring focus to the specific vehicle and code you’re working on, including:
|
|
|
|
|
|
|
|
