Modern vehicle faults don’t always follow expected patterns. Fault codes can be misleading, symptoms can overlap, and time spent searching for answers quickly adds up.
With Fast-Track® Troubleshooter Tips, you don’t just rely on theory, you gain access to real‑world insights based on actual workshop repairs.
Traditional diagnostics focuses on testing components and interpreting data, but real faults are often influenced by:
Troubleshooter Tips combine OEM data with real‑world repair knowledge, helping you identify faults faster and with greater confidence.
Without this insight:
Troubleshooter Tips help you:
In many cases, valuable time in the workshop is lost searching through OEM procedures, forums, repair guides, or relying on past experience to piece together a diagnosis. The latest software release expands the Troubleshooter Tips repository, combining:
Enhanced capabilities include:
These enhancements help technicians diagnose faster, improve first‑time fix rates, and reduce comebacks.

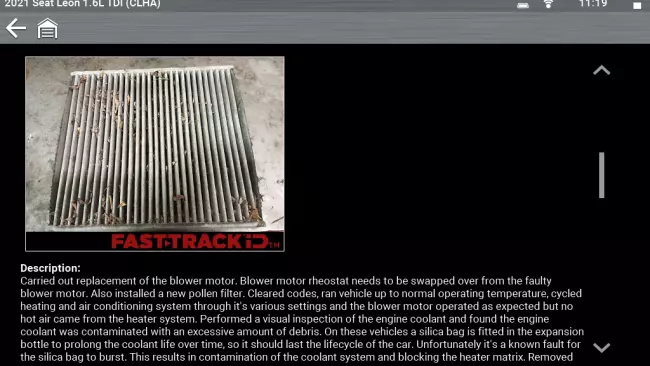

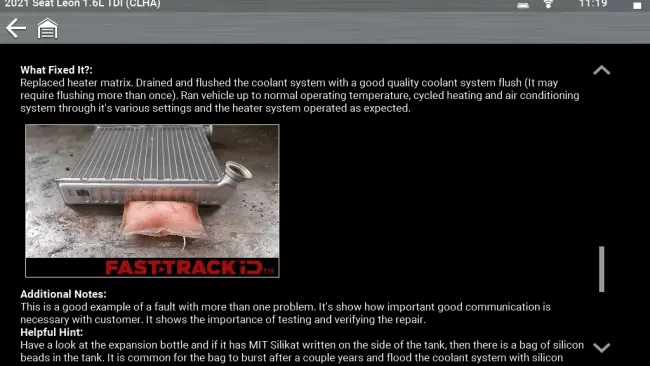

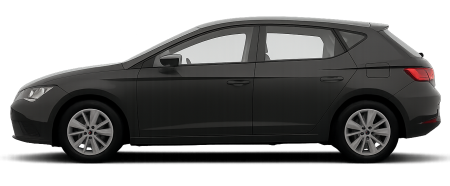

On the SEAT® Leon 1.6L Diesel (2010–2013), a commonly overlooked cause of poor heater performance is silicate contamination within the cooling system.
The latest software release enhances Fast‑Track Troubleshooter Tip coverage to highlight this known issue, which originates from the degradation of the silicate bag within the expansion tank. When the bag breaks down, debris can circulate through the system and restrict coolant flow through the heater matrix. As the matrix contains very fine internal passages, even small amounts of contamination can lead to reduced heating performance or complete blockage.
Troubleshooter Tips provide clear insight into DTC: B10BE-13 helping technicians identify the root cause rather than replacing components based on assumption. By applying simple diagnostic checks, such as comparing inlet and outlet temperatures, restriction can be confirmed quickly without unnecessary disassembly.

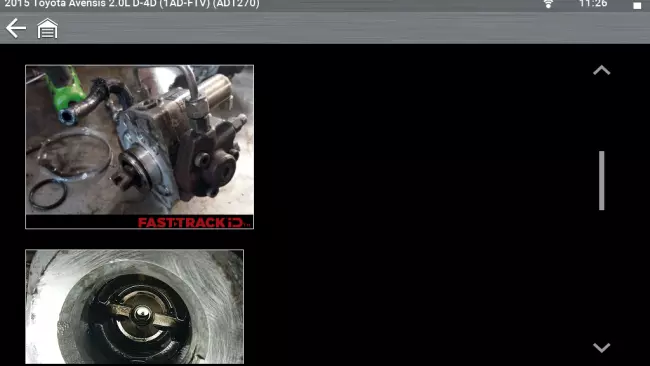

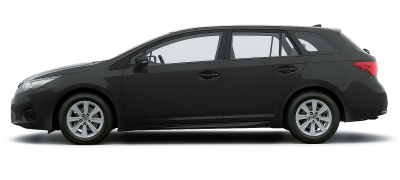

On the Toyota® Avensis 2.0L Diesel (2008–2018), no start conditions can occur due to high-pressure fuel pump drive issues that are not immediately obvious from fault codes.

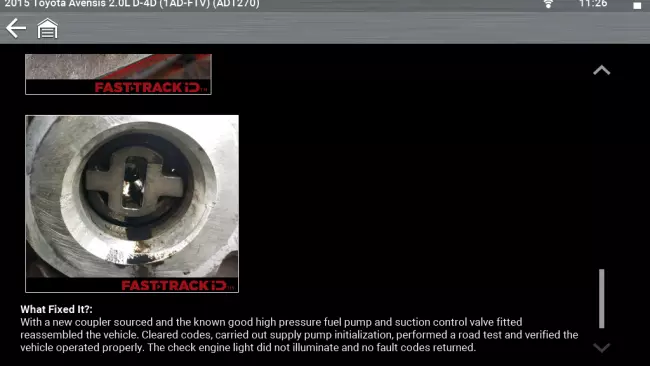

Enhanced Troubleshooter Tips provide detailed guidance for this scenario, where the high‑pressure fuel pump relies on a mechanical coupling to transfer drive from the camshaft. During service or repair, this small but critical component can be displaced or omitted during reassembly, resulting in a lack of fuel pressure despite no obvious component failure.
Troubleshooter Tips highlight this as a known issue, allowing technicians to quickly identify the root cause using live data and inspection rather than following misleading diagnostic paths based on fault codes alone. This helps reduce unnecessary testing and ensures the correct diagnosis is made early in the process.

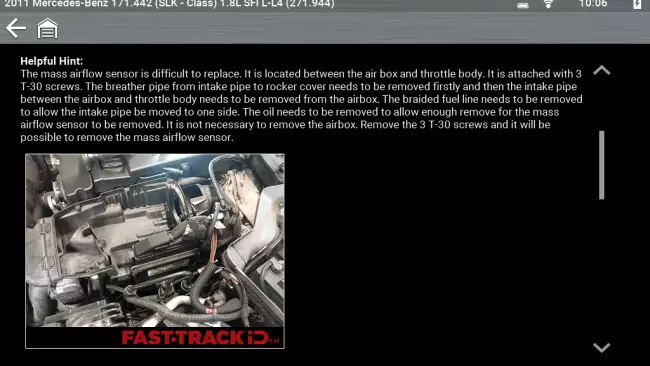

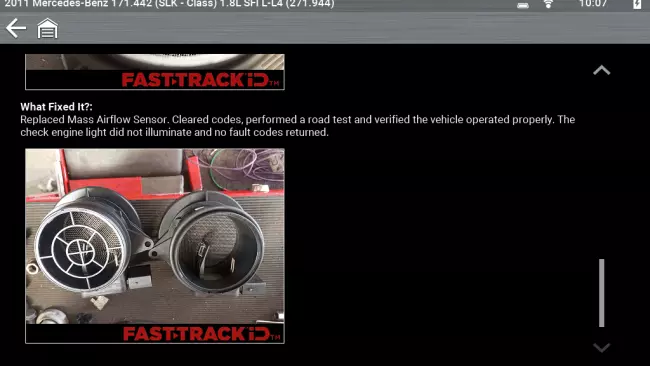

On the Mercedes‑Benz® SLK 200 1.8L Petrol (2004–2011), mass air flow (MAF) sensor faults can often lead to incorrect assumptions during diagnosis.
Troubleshooter Tips provide enhanced support for identifying these issues, where symptoms such as engine management warnings, poor performance, and fuel trim faults are not always caused by the sensor itself. Electrical faults, wiring issues, or intake system conditions can produce similar behaviour, leading to unnecessary component replacement.
With access to known fault patterns and visual guidance, technicians can verify sensor performance accurately before replacing components. When combined with Guided Component Tests, this ensures a more reliable diagnosis and helps avoid misdiagnosis and repeat repairs.
Modern diagnostics requires more than following fault codes, it requires understanding how faults behave in real workshop conditions. Our latest Technical Focus article explores how Troubleshooter Tips combine OEM procedures with experience‑based insights, helping technicians recognise common issues, avoid misdiagnosis, and complete repairs with confidence.
Discover how real‑world fixes can save time, reduce comebacks, and improve first‑time fix rates across heater matrix, fuel system, and airflow‑related faults.
ADAS Fundamentals and Testing with Jason Gabrenas
OEM-Specific ADAS Training - Hyundai® / Kia® with Jason Gabrenas
This exclusive feature transforms your diagnostic platform into an on‑demand learning hub you can access anytime, at your own pace.
From the homepage, simply select: Guided Component Tests → Classes → How To
Here you’ll find a dedicated library of practical, real‑world training, including:
Exclusively available on MODIS®, TRITON™, ZEUS® & Vantage® platforms with current software.
To cut through the complexity, Patented Fast-Track® Troubleshooting workflow and filtered information bring focus to the specific vehicle and code you’re working on, including:
|
|
|
|
|
|
|
|
Purchase a Software Plan
Keep your tool performing at its best. Software options help you diagnose problems faster and tackle even the toughest repairs with confidence. Click below for more information or contact your Snap-on Franchisee for the latest software deals.
Download the Latest Software
If you are a software subscriber, purchased a prepaid plan or participated in a free software offer, you can perform your own software installation by downloading the latest software release through the ShopStream® Self-Service application, quickly and easily.
This content is intended for informational purposes only and is designed to provide general technical insight. It is not intended to serve as step‑by‑step repair or diagnostic instruction. Always follow manufacturer‑approved procedures and safety guidelines when carrying out vehicle diagnostics or repairs.
